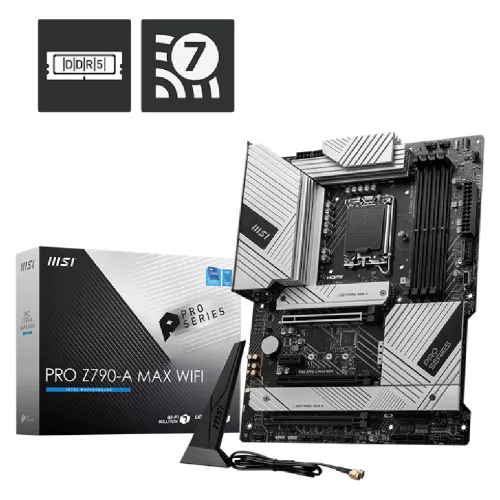

185,500.00 ৳MSI PRO Z790-A MAX WIFI MAINBOARD LGA 1700 SOCKET, DDR5 MEMORY UPTO 7800 + OC
Key Features
Model: PRO Z790-A MAX WIFI
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 7 Solution
SKU :
MOT0963Category :
MotherboardSpecification
Basic Information | |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output |
Expansion Slots | |
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 4x M.2 slots |
Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1.4 |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | LED FEATURE: 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard
The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard designed to meet current computer and gaming demands. It is designed to handle Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, and it makes use of the LGA 1700 socket for broad processor compatibility. Its compatibility for DDR5 memory, which operates at Dual Channel DDR5 speeds of 7800+MHz (when overclocked), ensures fast data access and better multitasking. The motherboard delivers superior power delivery and efficiency because of its 16+1+1 digital power system, 80A smart power stages, twin 8-pin CPU power connections, Core Boost, and Memory Boost technologies. It also excels in thermal management with an extended heatsink, MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr, all contributing to sustained high performance during extended gaming sessions. Durability and dependability are ensured by a high-quality 6-layer PCB composed of 2oz thicker copper and server-grade components. PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectors provide lightning-fast connection. Intel Turbo USB 3.2 Gen 2 provides robust and fast USB communication. The 2.5G LAN with Wi-Fi 7 Solution provides professional and multimedia users with enhanced networking capabilities, enabling safe, stable, and fast network connections. Finally, AUDIO BOOST 5 pampers your ears with studio-grade sound quality, giving an immersive gaming experience with remarkable audio clarity and fidelity. The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is an excellent choice for gamers and content makers seeking top-tier performance and connection on a single board.
