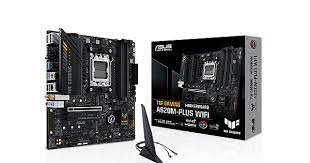

ASUS TUF GAMING A620M-PLUS WIFI MOTHERBOARD

https://www.daffodil-bd.com/web/image/product.template/24262/image_1920?unique=7570cb5
(0 review)

Key Features:
Model: TUF GAMING A620M-PLUS WIFI
Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
Supported Memory: 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Features: Wi-Fi 6, Bluetooth v5.3, Realtek 2.5Gb Ethernet

23,500.00 ৳ 23500.0 BDT 23,500.00 ৳ VAT Excluded

23,500.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUAMD Socket AM5 for AMD Ryzen 8000/ 7000 Series Desktop Processors
    ChipsetAMD A620 Chipset
    BIOS256 Mb Flash ROM, UEFI AMI BIOS
    Form FactorMicro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
    AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    Expansion Slots
    PCIAMD Ryzen 7000 Series Desktop Processors*
    1 x PCIe 4.0 x16 slot
    AMD A620 Chipset
    2 x PCIe 3.0 x1 slots
    Memory
    TypeDDR5
    Slots4 x DIMM
    Supported MemoryDDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    OptiMem II
    Maximum Memory192GB
    Graphics
    Graphics2 x DisplayPort**
    1 x HDMI port***
    ** Support max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Connector & Ports
    HDMI1 x HDMI
    Display Port (s)2 x DisplayPort
    USB (s)Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    LAN Port (s)1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless Communication moduleWi-Fi 6
    1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.3
    Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD A620 Chipset
    4 x SATA 6Gb/s ports
    RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
    Audio3 x Audio jacks
    Internal I/O PortsFan and Cooling related
    1 x 4-pin CPU Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x 10-1 pin System Panel header
    Others
    Special Features ASUS TUF PROTECTION
    - DIGI+ VRM
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Bundled SoftwareASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    - Two-Way AI Noise Cancellation
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    TUF GAMING CPU-Z
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty3 Years

    Description

    ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard

    The ASUS TUF GAMING A620M-PLUS WIFI is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 192GB of DDR5 memory with speeds up to 7600MHz+ (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard supports ASUS-exclusive software such as Armory Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
