Price:
6993,23 ৳

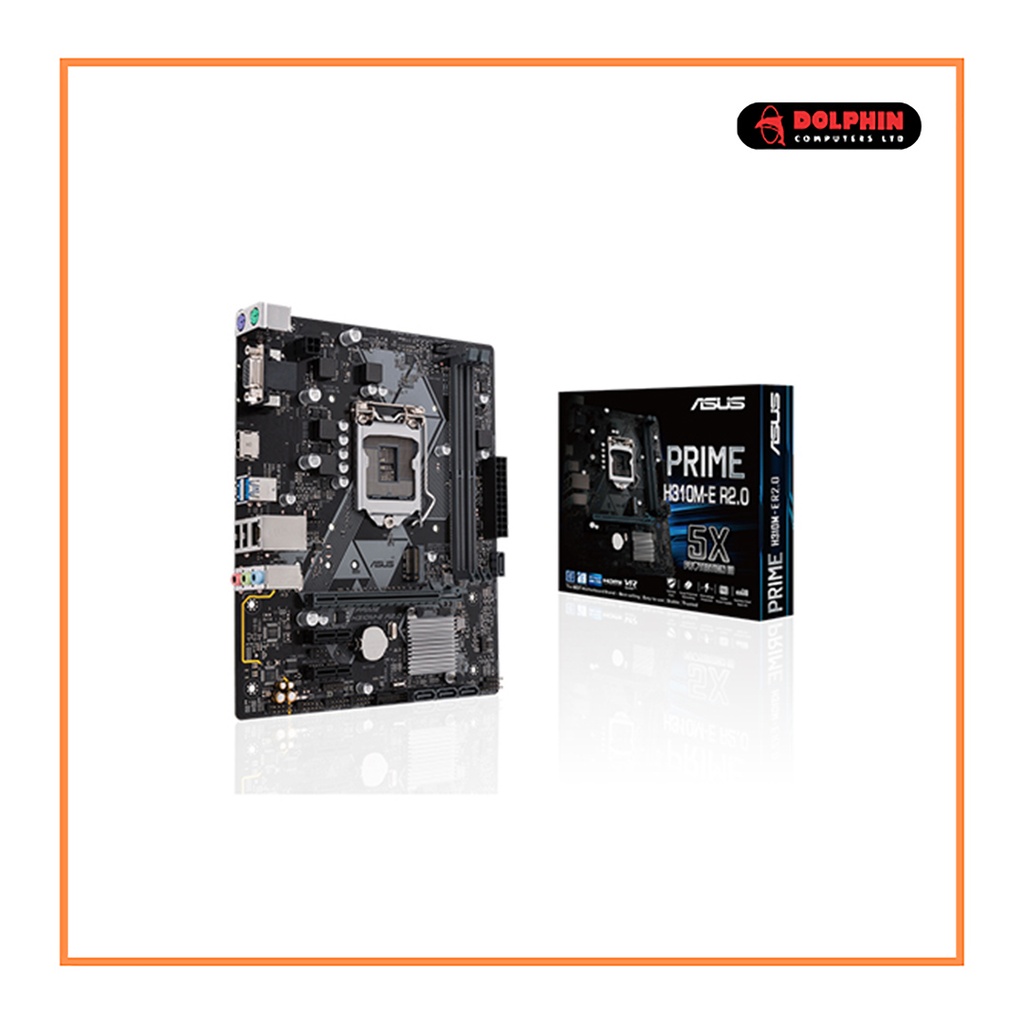

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard
Key Features
Model: PRIME H310M-E
CPU: 8th Generation Intel Processors
Chipset: Intel H310
2 x DDR4 DIMM
3 x PCI Express slot
Specification
| Basic Information | |
| Supported CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H310 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| M.2 Socket | 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) |
| Memory | |
| Type | 2 x DIMM |
| Slots | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Supported Memory | DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Maximum Memory | 32GB |
| Graphics | |
| Graphics | Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Max Shared Memory | 1024 MB |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 X D-sub |
| USB (s) | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| LAN Port (s) | Realtek® RTL8111H, 1 x Gigabit LAN |
| Supported Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray, |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| TPM (Trusted Platform Module ) | 1 x TPM header |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
Asus PRIME H310M-E mATX gaming motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This LED lighting enabled board also supports dual channel DDR4 maximum 32GB memory and it has the capability of Ultrafast 32Gbps M.2 SATA 6Gbps and USB 3.1 Gen 1 interface. Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having the maximum resolution of 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz for HDMI 1.4b & 1920 x 1200 @ 60 Hz for D-sub slots. This ASUS Fan Xpert motherboard has Multi-VGA output and Asus Optimem for stable performance.
